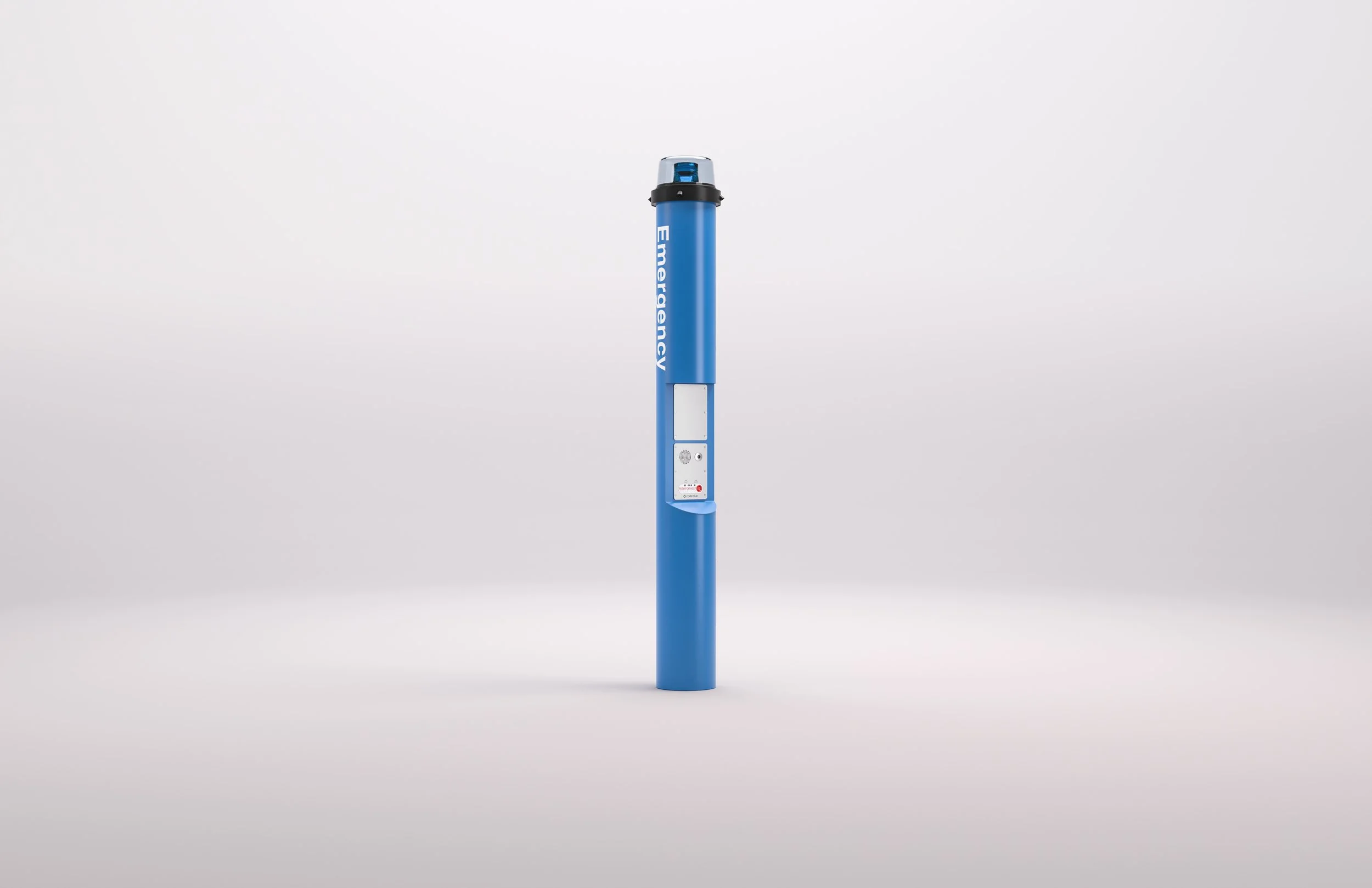

CB 1-e Help Point®
High-visibility pedestal Help Point for walkways, parking lots, and open campus environments
Durable steel construction
Trademarked cylindrical design
9 ft overall height
LED faceplate light
Touch-sensitive piezoelectric call buttons that won’t stick or jam
The Code Blue® CB 1-e delivers high visibility and reliable access to help in a streamlined pedestal design. A high-intensity LED beacon/strobe enhances awareness and acts as a visual deterrent, while providing direct communication to first responders.
Visible from
across the lot
A high-intensity LED beacon/strobe sits at the top of the 9 ft pedestal, so the Help Point® is easy to spot day or night and acts as a visual deterrent. An LED faceplate light keeps the call buttons readable after dark, and an optional Motion Sensing Area Light uses four PIR sensors for 360° motion detection with an ambient light sensor that saves power during the day.
Direct communication
to first responders
Touch-sensitive piezoelectric call buttons won’t stick or jam, and a single press connects the caller to help. Choose the LS1000 or LS2000 full duplex, SIP compatible VoIP phone, or the IA4100 analog phone, and connect the unit over hardwired, cellular, or IP wireless networks. Code Blue Cloud adds multi-network connectivity with automatic failover and zero-maintenance, cloud-managed operation.
Built for open
environments
The CB 1-e is formed from 10 gauge steel in Code Blue’s trademarked cylindrical design and is built to NEMA 3S specifications, certified to UL 62368-1, and designed to ADA specifications. Power it from 120-277V AC, NightCharge, or PoE, and configure it with a dual faceplate opening or an AED housing. Fourteen standard wet coat paint colors and seven standard graphics text options are available, along with custom colors, graphics, and fonts.
Technical specifications
CB 1-e Help Point® · Document CPS-102-0626r1
Size and weight
Height
108″ (274.32 cm)
Diameter
12.8″ (32.51 cm)
Weight
187 lbs (84.82 kg)
Access door
12″ x 8.5″
Construction
Material
0.135″ (10 gauge) steel
Trademarked cylindrical design
Configuration options
Dual faceplate opening
AED housing
Communication
Speakerphone options

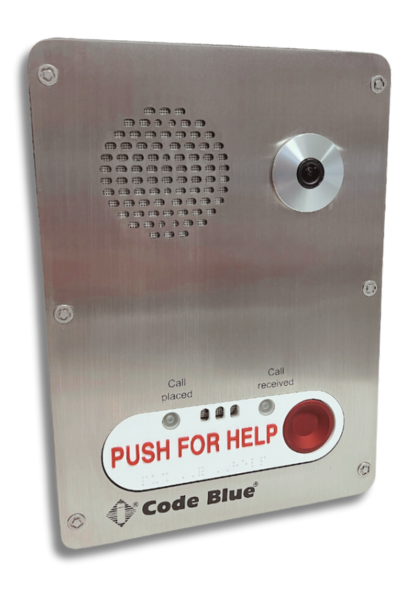

LS1000 or LS2000 full duplex, SIP compatible VoIP phone
IA4100 analog phone
Connection options
Hardwired
Cellular
IP wireless
Call buttons
Touch-sensitive piezoelectric buttons that won’t stick or jam
Power
Source power options
120-277V AC
NightCharge
PoE
Lighting
High-intensity LED beacon/strobe
LED faceplate light
Optional
Motion Sensing Area Light with four PIR sensors for 360° motion detection and an ambient light sensor
Finish and graphics
Standard wet coat paint colors
Safety Blue, Safety Yellow, Safety Red, Gloss White, Bright Silver, Tiger Orange, Midnight Blue, Gloss Black, Dark Bronze, Cardinal Red, Medium Bronze, British Racing Green, Architectural Gray, Oak Buff
Standard graphics text
Emergency, Assistance, Help Point, Police, Courtesy, Security, Information
Standard graphics text colors
White, Black, Blue, Red, Green, Yellow, Orange, Purple, Brown
Custom
Custom colors, graphics, and fonts available
Compliance
UL 62368-1
Built to NEMA 3S specifications
Designed to ADA specifications
Warranty
Value
Accessories
Popular upgrades for the CB 1-e include Code Blue Software, Code Blue Cloud, the Motion Sensing Area Light, and the Audio Paging Speaker.

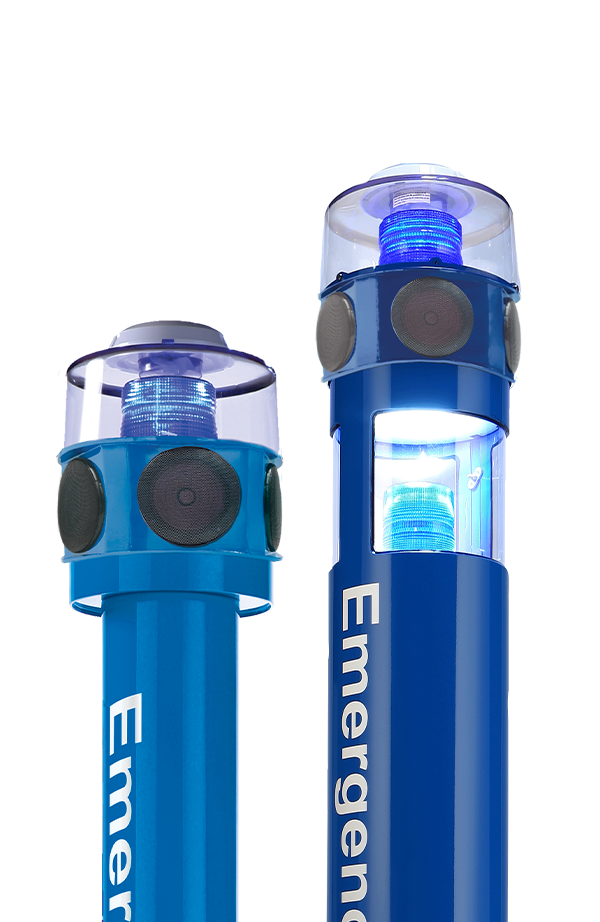

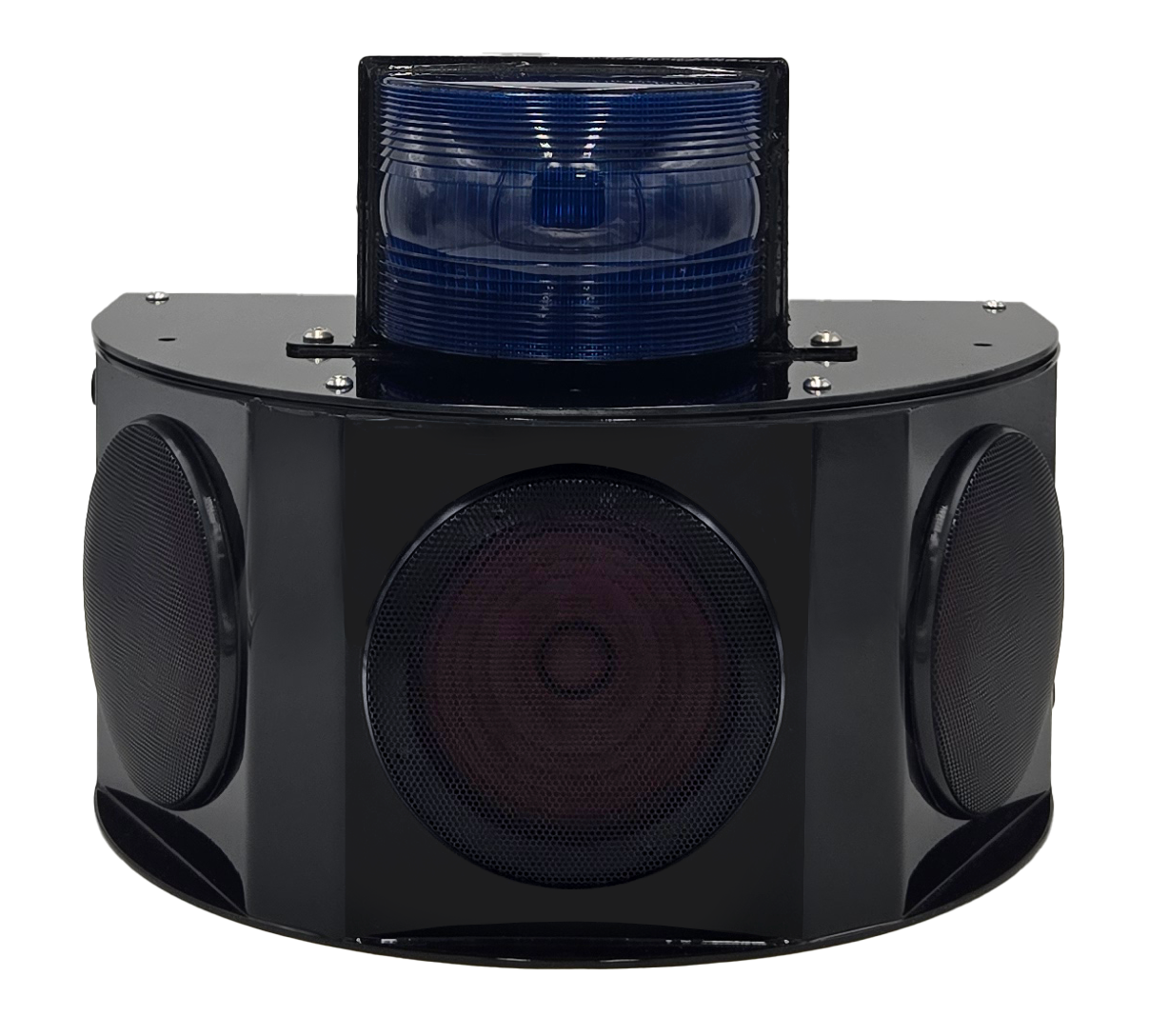

180º Audio Paging Speaker
360º Audio Paging Speaker

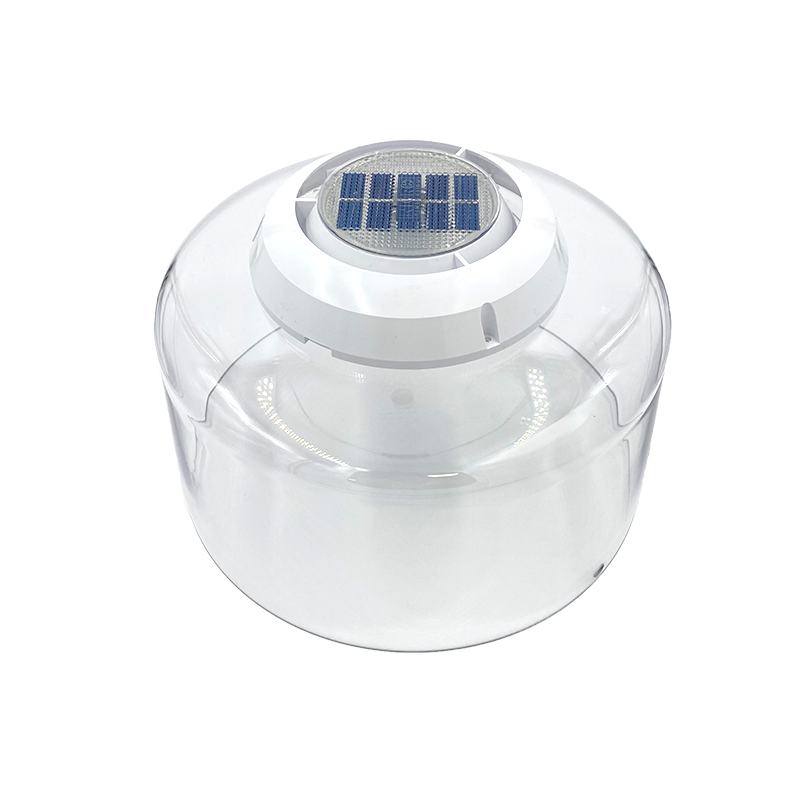

Active Vent
Part #40072
Camera
How to buy
Code Blue® products are specified, sold, and installed through our network of sales representatives and distribution partners.
Find a sales representative
Connect with the Code Blue representative who covers your region for product guidance and project support.
Request a quote
Share your project details and quantities, and our team will follow up with pricing and lead times.
Distribution partners
Resellers and integrators can find contact information for authorized Code Blue distributors.
Part numbers for ordering
| Name | Description | Part number |
|---|---|---|
| CB 1-e Help Point® | Standard configuration | XXXX-XXX |
| CB 1-e Help Point® | Dual faceplate opening | XXXX-XXX |
| CB 1-e Help Point® | AED housing | XXXX-XXX |
